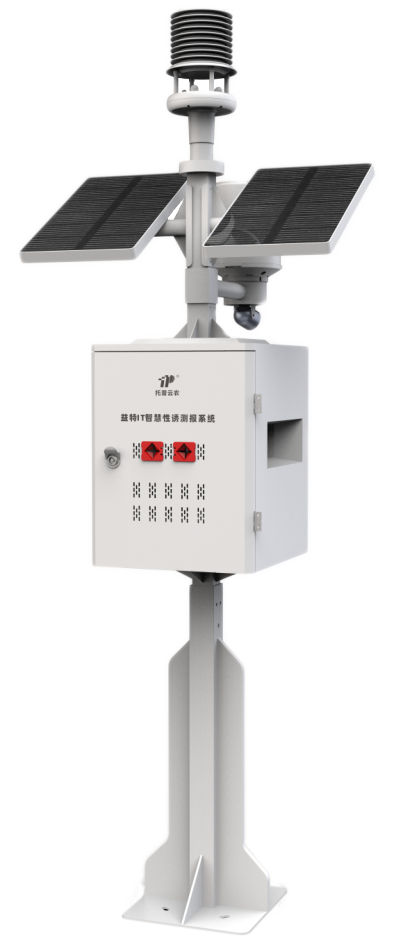

IoT Sex-pheromone Pest Monitoring System

TPXY-SAM4.0

An intelligent pest monitoring system based on sex-pheromone trapping and AI recognition, integrating pest collection, weather-linked analytics, and cloud-based early warning for targeted pest surveillance.

tpxy sam 4.0

  • Uses sex pheromones / food attractants for targeted pest trapping

  • Built-in HD camera with automatic and remote imaging

  • AI recognition and automatic counting of key agricultural pests

  • Automatic generation of pest type and quantity statistics

  • Integrated weather and soil monitoring for correlated analysis

  • Remote management via Web platform and Mobile App

  • Multi-entry trap design for improved capture efficiency

  • Automatic sticky trap roll replacement reduces maintenance

  • Rainproof structure enables continuous operation in wet conditions

  • GPS positioning for anti-theft and device tracking

  • Solar-powered low-energy design for long-term field deployment

  • Reusable sticky rolls for improved operational efficiency

  • Pheromone-based Pest Identification Model – AI-based identification of pheromone-trapped pests such as fall armyworm and rice stem borer.

  • Automatic Pest Counting Model – Automatically counts captured pests and generates time-series statistics.

  • Pest–Weather–Soil Correlation Model – Analyzes relationships between pest occurrence, weather, and soil conditions for predictive modeling.

  • Pest Outbreak Prediction Model – Predicts pest outbreak trends using historical and real-time monitoring data.

  • Multi-source Environmental Fusion Model – Integrates weather, soil, and crop imagery for comprehensive environmental analysis.

  • GIS Pest Spatial Analysis Model – Visualizes pest distribution and device data through GIS mapping.

  • Cloud Decision Support Model – Provides early warning, trend reports, and decision support for pest management.

Smart Pheromone Trap Host

Battery Capacity12Ah
Operating Voltage12V
Solar Panel15W
Camera16MP HD camera
Installation Height0.8m / 1.2m / 1.4m (adjustable)
Battery LifeOver 20 days in continuous rainy conditions

Weather Monitoring Module

Battery Capacity4Ah
Operating Voltage12V
Solar Panel15W
Camera2MP camera
Monitoring ParametersAir temperature & humidity, light intensity, rainfall, wind speed & direction, atmospheric pressure, altitude, soil temperature & moisture, dew point, etc. (customizable)
