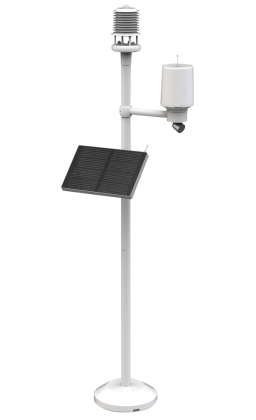

Meteorological Monitoring Station
TP-WMS-1L
A standard agricultural meteorological monitoring system integrating air and soil environmental monitoring. Widely applicable to agricultural meteorology, campus weather monitoring, and various other environmental monitoring scenarios.
Power supply: Solar + rechargeable battery hybrid mode, easy to remove and replace.
System control: The main unit allows remote configuration of data collection intervals, storage and transmission intervals, and IP address via the management cloud platform.
Data acquisition and upload: Uploads to the cloud platform via wireless communication.
Communication network: Supports 4G network for server communication.
Data upload options: Data can be uploaded to a user-designated computer or to the main server, switchable without interference.
Crop growth monitoring: Equipped with a camera supporting timed photo capture; images can be uploaded to the management cloud platform for observing actual plant growth.
Long battery life: Can operate continuously for over 15 days; with solar charging, sustained operation is possible.
Large data storage: Supports TF card configuration, storing at least 400,000 sensor data records, ensuring 5 years of sensor data storage.
| Working environment | Temperature: -30°C ~ 55°C; Humidity: 5% ~ 98% |
| Operating environment | -20°C ~ 70°C |
| Enclosure waterproof rating | IP67 |
| GPS positioning | Supported |
| Communication method | 4G network, compatible carriers: China Mobile / China Unicom / China Telecom |
| Endurance | Built-in high-capacity lithium battery, can operate independently for over 15 days; with external solar panel, enables continuous operation |
| Protection rating | IP65 |
| Data upload frequency | Default 2h per upload (user-configurable) |
| Data collection frequency | Default 1h per collection (user-configurable) |
| Battery capacity | Built-in 4AH / 3.7V lithium iron phosphate battery |
| Standard accessories | Mounting bracket, solar panel, data SIM card, waterproof main unit |
