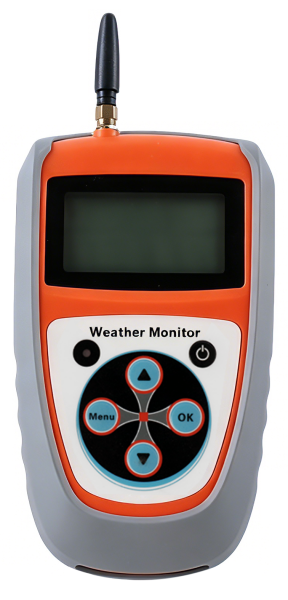

Mobile Sensing Terminal

sensor host
  • Portable Multi-Parameter Data Collection
    Connects to a wide range of agricultural sensors for real-time measurement and recording of soil, crop, and environmental parameters in the field.
  • Supports Up to 32 Sensor Types
    Compatible with multiple sensor types simultaneously, allowing flexible expansion without affecting measurement accuracy.
  • Large Local Data Storage
    Stores up to 30,000 records internally, with expandable memory for virtually unlimited local data storage.
  • Long Battery Life & Low Power Design
    Built-in rechargeable lithium battery with low-power operation ensures reliable field use for extended periods.
  • GPS & Multi-Constellation Positioning
    Integrated GPS, BeiDou, and Galileo positioning enables automatic location recording and asset tracking.
  • Automatic Scheduled Monitoring
    Supports both scheduled and manual data collection for unattended monitoring applications.
  • Audible Alerts & On-Site Display
    Built-in LCD display and voice alerts provide instant access to measurement data and abnormal condition warnings.
  • Real-Time Cloud Connectivity
    Automatically uploads data via 4G/5G networks for remote access through the web platform, enabling users to monitor field conditions anytime, anywhere.
  • Web & Mobile Monitoring
    Access live and historical data through both web browsers and iOS/Android mobile applications.
  • Inteleligent Dcision Support (Optional Cloud Service)
    Collected data can be analyzed using TOP Cloud-Agri’s intelligent agricultural models, including crop growth analysis, pest & disease forecasting, and environmental assessment.
Communication 4G / 5G Wireless Communication
Cloud Connectivity Automatic data upload to cloud server
Mobile App Android & iOS
Display LCD Display
Data Storage 30,000 records (Internal Flash) + Expandable 4 GB TF Card
Power Supply Built-in 7.4 V / 2.8 Ah Rechargeable Lithium Battery
External Power Input DC 8.4 V (≥1000 mA)
Data Collection Modes Manual / Scheduled Automatic Collection
Sensor Interface Supports multiple sensors via hub
Maximum Sensor Capacity Up to 32 sensor types (expandable)
Positioning GPS + BeiDou + Galileo
Altitude Measurement Supported
Expansion Cable Protection IP67
